Retail Scale and Wrapping

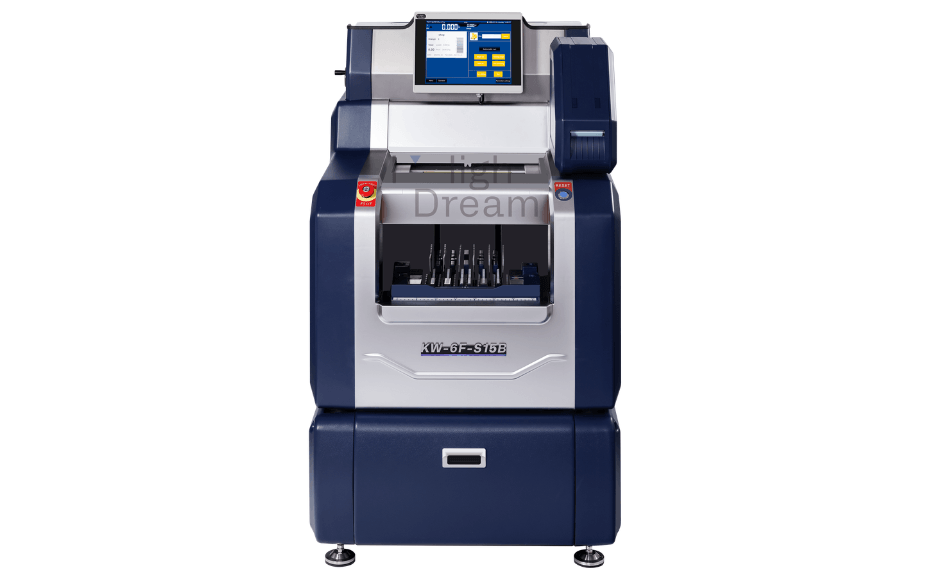

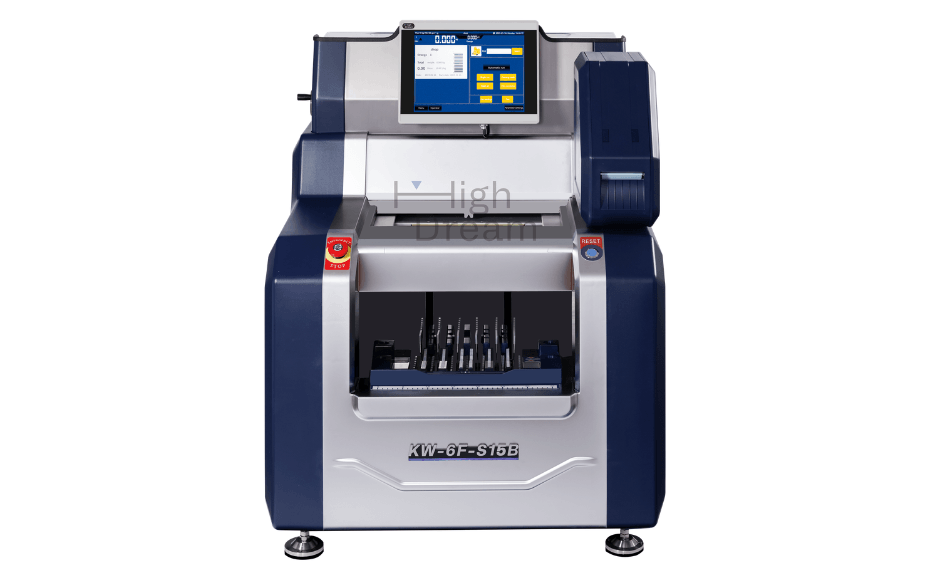

WrapDude KW-6F Series

Efficient, safe, stable and integrated: the WrapDude KW-6F weighing, wrapping & labeling machine improves product packaging efficiency and helps fresh-food companies reduce labor costs and management costs.

PRODUCT DESCRIPTION

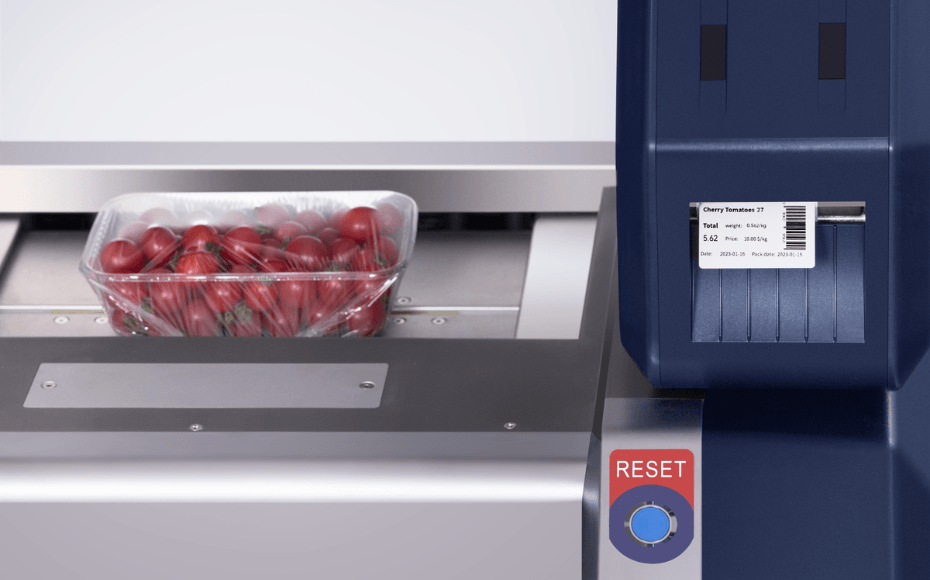

A weighing, wrapping & labeling machine that packs fresh food easily, quickly and efficiently, extending food freshness and shelf life. By simplifying operation, it reduces your workload and increases efficiency. Widely used in vegetable factories, mushroom farms, meat processing plants and supermarket backroom areas.

Main Feature

Compact design and small footprint for better usability and efficiency.
Semi-automatic weighing, packaging and labeling, greatly reducing tedious manual work.
C/S architecture supports internet data transmission and backup, useful for data storage and statistics.
Full touchscreen shows items as images in a straightforward and easy manner, so it can be applied by a wider range of people.
Embedded Linux operating system for smooth and stable operation.
User-friendly resistive touchscreen, able to deal with complex environments.

APPLICATION

Widely used in vegetable factories, mushroom farms, meat processing plants and supermarket backroom areas.

SPECIFICATION

ltem	WrapDude KW-6F Series
Model	KW-6F-S15B
Weighting
Weighing range	3kg
Scale interval	1g
Min Load	20g
Operation display	12.1" resistive TFT touch screen
Dimensions (W x D x H)	8109001425mm
Net weight	225kg
Wrapping
Wrapping speed	Max. 15 packages/min
Package size	Width 80~280mm Heigt 90~200mm Depth 10~150mm
Film width	350mm-450 mm
Thermal printer
Label type	Liner label
Printing speed	up to 30 mm/sec
Supported Paper roll diameter	50mm-200mm
Supported Paper roll width	45mm-85mm
Print width	81mm
Print resolution	960 dots/line
Service life	50 KM
Power consumption	100-240V～50/60Hz
Humidity	35% to 85%RH
Net weight	225kg
Interfaces	LAN/USB
Option	stand
